The SteerStopper® parts explained

untitled-4280 copy.jpg

 a few reasons you will benefit from a SteerStopper®

  • Decreased frustration from your bike falling over.

  • Easier to carry your bike when the front wheel isn't flopping.

  • Easy access to your panniers without having to wrestle with your bike.

  • Save damage to you bike from unnecessary falls.

  • Ideal for Recumbent, Tandem, Single and E-Bikes!

  • Easy loading for car top racks.

  • 100% designed, manufactured and hand-assembled in the U.S.A.  It works with fenders, too!

  • Easier to push your loaded touring bike up steep hills (from behind vs. from the side).

  • Holds your steering straight when your bike is on the work stand.

  • Easier for your riding partner to hold your bike.

  • Easily lean two bikes together without kickstands, as long as they both have SteerStoppers®

  • Keeps your bar-end shifters from hitting your top tube every time the wheel flops.

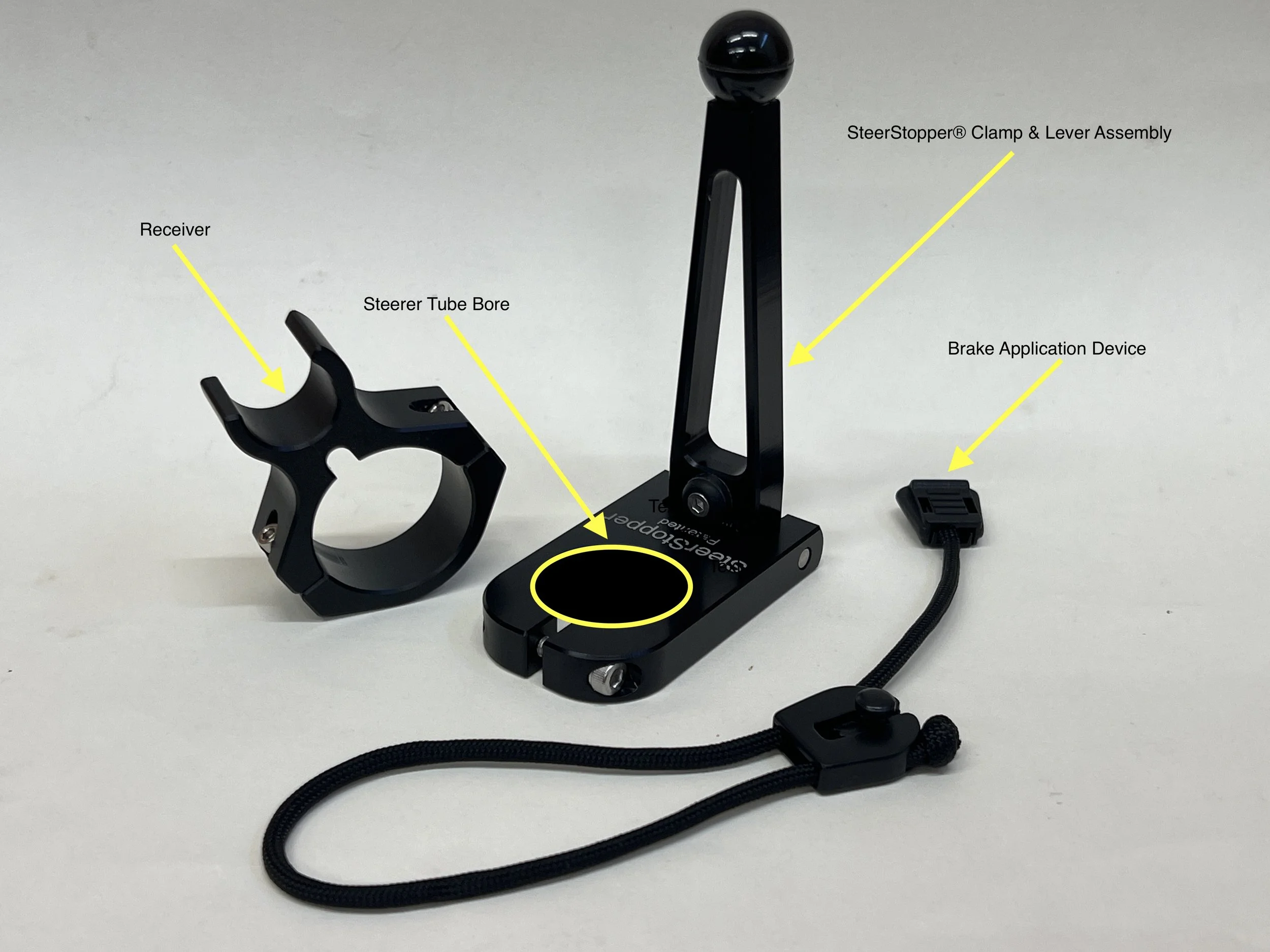

the COMPLETE steerstopper® includes Five items:

  • 1 SteerStopper® (The Clamp + Lever Assembly) Choose the correct style and order as a separate item.

  • 1 Receiver (the black clip) to fit your top tube. Choose the correct size and order as a separate item.

  • 1 Brake Application Device Augmenting SteerStopper (B.A.D.A.S.S.)

  • 1 Protective Strip To Protect Your Paint And Add Grip For The Receiver.

  • Hand-Made (by us) Reusable Pouch.

Will The SteerStopper® will fit my bike?

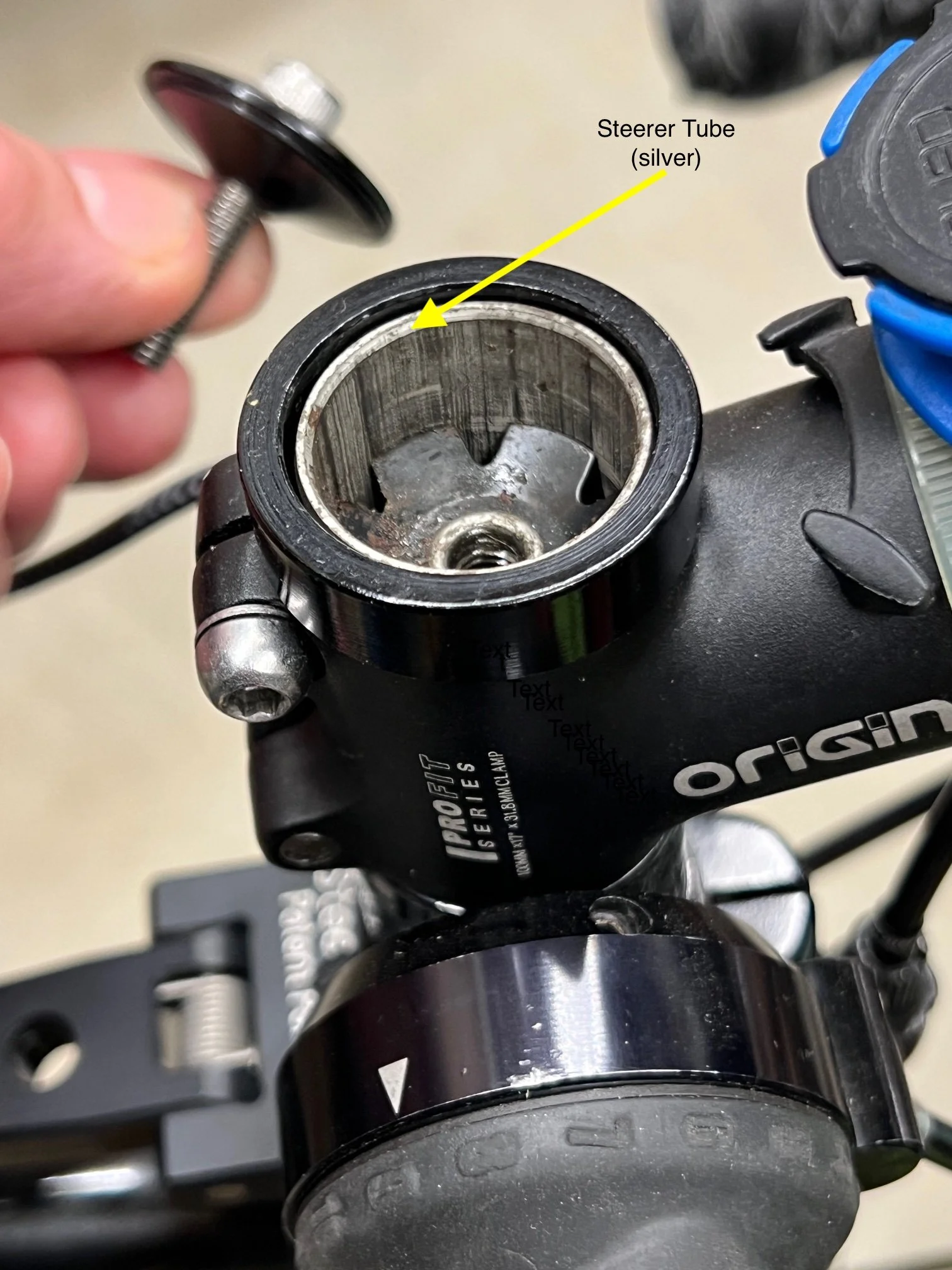

Threadless Steer System, 1-1/8", YES - This is the most common.

Quill Stem, 7/8” (22.2mm), YES (classic/old style) fitted using a spacer, sold separately.

1" Stem, (25.4mm), YES (less common) fitted using a spacer, sold separately.



available sizes for round top tubes:

1” (25.4mm dia.)

1-1/8" (28.6mm dia.)

1-1/4" (31.75 dia.)

1-3/8” (35mm dia.)

1-1/2" (38.1mm dia.)

1-5/8” (41.3mm dia.)

1.75” (44.5mm dia.)

2” (50.8mm dia.)

2-1/8” (54mm dia.)

For Non-Round Top Tubes:

Universal Fit: Maximum Circumference is 7-1/2"(190mm). This diameter can be doubled by using two clamps.

Custom Installation:

Screw-on Style:  Great option if your bike is being custom built or refurbished.  A 5mm threaded insert is installed into the top tube and the receiver is attached with a single screw.

How to measure:

The easiest way to determine your top tube diameter is to use a flexible measuring tape and measure the circumference and then divide by 3.14.  If you don't have a flexible measuring tape, you can use a piece of masking tape to wrap the tube, then measure the length and divide by 3.14

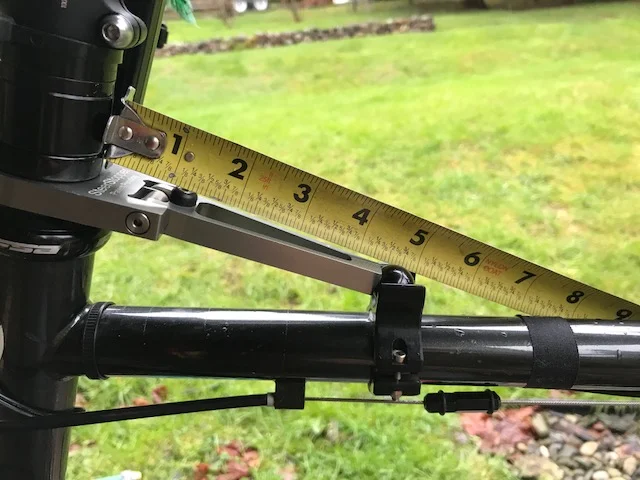

Photo showing where receiver mounts, approximately 4-1/2-inches back from the Steerer tube spacers


If your cables or cable housing stops are in the way, contact us for options.  We don’t mind problem-solving.



Specifications, Aluminum:

Recommended for all bikes with front end loads

  • Clamp+Lever Assembly: CNC machined T6061-T6 Anodized Aluminum, 10mm thick.

  • Spring: Custom Engineered, Stainless Steel Torsion

  • Bushing: Bronze

  • Hardware: 18-8 Stainless Steel

  • Receiver: CNC machined Delrin®

  • Weight: Clamp+Lever 2.75 oz. (78gr)

  • Weight: Receiver .25 oz. to 1oz. depending on version

  • Warranty: Lifetime, on aluminum parts, against manufacturing defects

  • Note: This version is recommended for bikes with front end loads such as panniers, baskets or handlebar bags, due to its extra strength

Specifications, Delrin®(ACeTal PLASTIC):

 Recommended for bikes without front end loads

  • Clamp+Lever Assembly: Delrin®, 10mm thick.

  • Spring: Custom Engineered, Stainless Steel Torsion

  • Hardware: 18-8 Stainless Steel

  • Receiver: CNC Machined Delrin®

  • Warranty: One Year, excluding the Receiver
